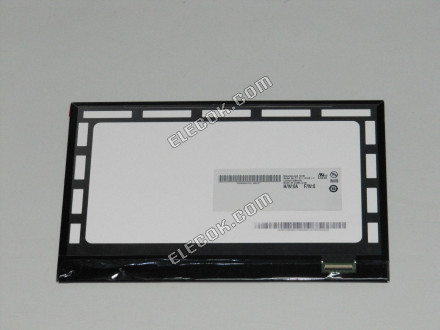

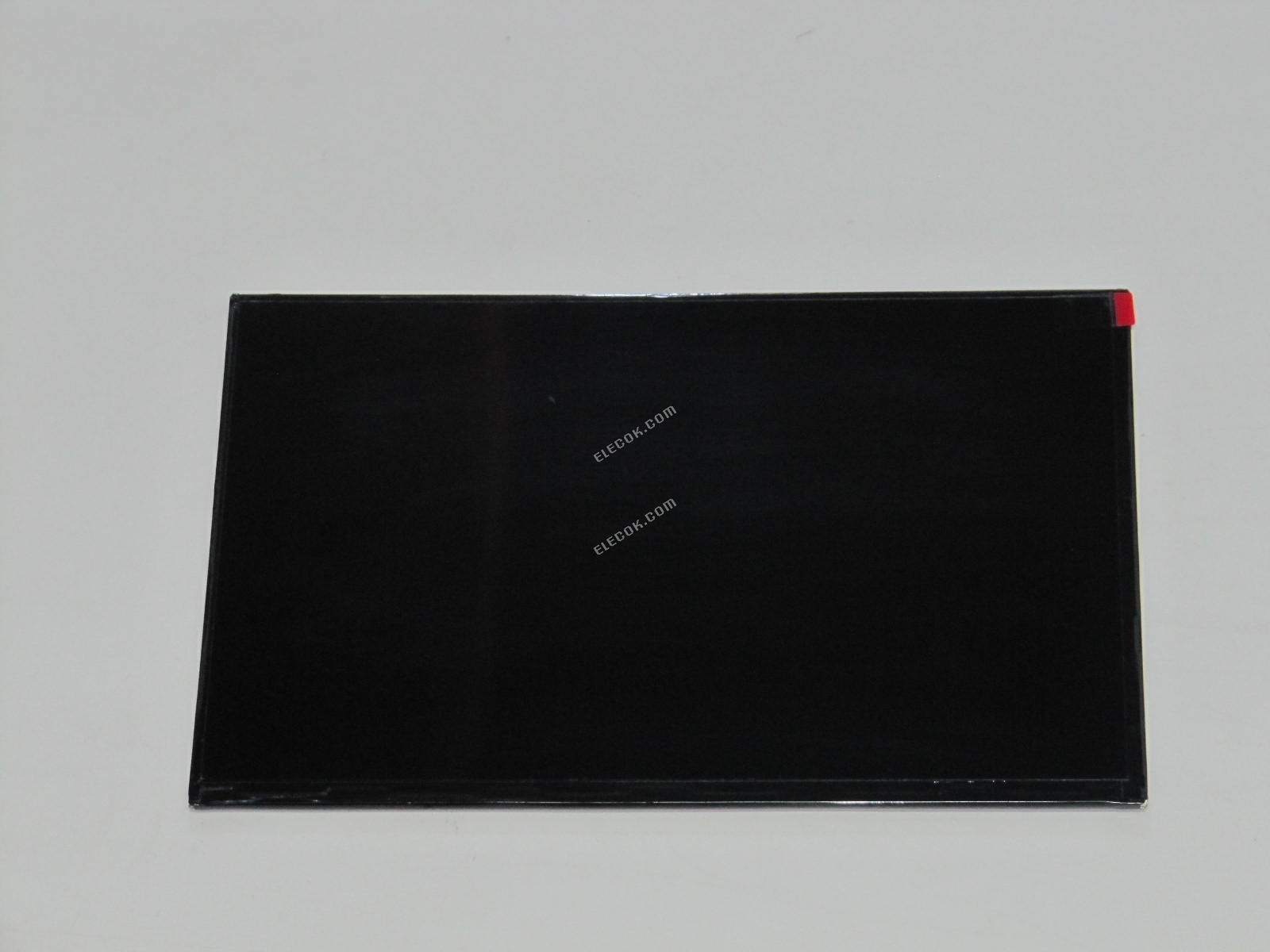

B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| Data Sheet | B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO |
| Panel Brand | AUO |
| Panel Model | B101UAN01.7 |
| Panel Type | a-Si TFT-LCD,Panel |
| Panel Size | 10.1 |
| Resolution | 1920(RGB)×1200 (WUXGA) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Surface | |
| Brightness | |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 13/12 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR?10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLED |
| Signal Interface | |
| Input Voltage | |
| RoHS | RoHS Compliance |
| Application | Tablet PC |
| Other Name | BL0LUAN0L.7 B1O1UANO1.7 |
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101UAN01.7 Basic Information | |
|---|---|
| Panel Brand | AUO |
| Panel Model | B101UAN01.7 |
| Panel Type | a-Si TFT-LCD,Panel |
| Application | Tablet PC |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| RoHS | RoHS Compliance |
| Specific Feature | Wide Viewing Angle White LED Backlight Wide Aspect Ratio |
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101UAN01.7 Mechanical Features | |
|---|---|
| Panel Size | 10.1" |
| Dot Resolution | 1920(RGB)×1200 (WUXGA) |
| Aspect Ratio | 4:3 (W:H) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Pitch | 0.113×0.113 mm (W×H) |
| Active Area | 216.81×135.50 mm (W×H) |
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101UAN01.7 Optical Features | |
|---|---|
| Display Mode | AHVA, Normally Black, Transmissive |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR?10) (L/R/U/D) |
| Viewing Direction | Symmetry |
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101UAN01.7 Electronics Feature | |
|---|---|
| Vertical Frequency | 60Hz |
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101UAN01.7 Backlight System | |
|---|---|
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Interface Type | Included in signal interface |
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| AUO B101UAN01.7 Signal Interface | |
|---|---|
| Interface Type | Connector |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
B101UAN01.7 10.1" a-Si TFT-LCD,Panel for AUO
| Gross Weight | 2 |
|---|
