G121S1-L02 12.1" a-Si TFT-LCD Panel for CMO
Data Sheet | G121S1-L02 12.1" a-Si TFT-LCD Panel for CMO |
Panel Brand | CMO |
Panel Model | G121S1-L02 |
Panel Type | a-Si TFT-LCDPanel |
Panel Size | 12.1" |
Resolution | 800(RGB)×600 (SVGA) |
Display Mode | Super MVA, Normally Black, Transmissive |
Surface | Antiglare (Haze 25%), Hard coating (3H) |
Brightness | 600 cd/m2 (Typ.) |
Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Response Time | 13/12 (Typ.)(Tr/Td) (ms) |
Viewing Angle | 89/89/89/89 (Typ.)(CR?10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | WLED |
Signal Interface | LVDS (1 ch, 6/8-bit) |
Input Voltage | 3.3/5.0V (Typ.) |
Other Name | GL2LSL-L02 G121S1-102 G121S1-LO2 |



Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason

Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us

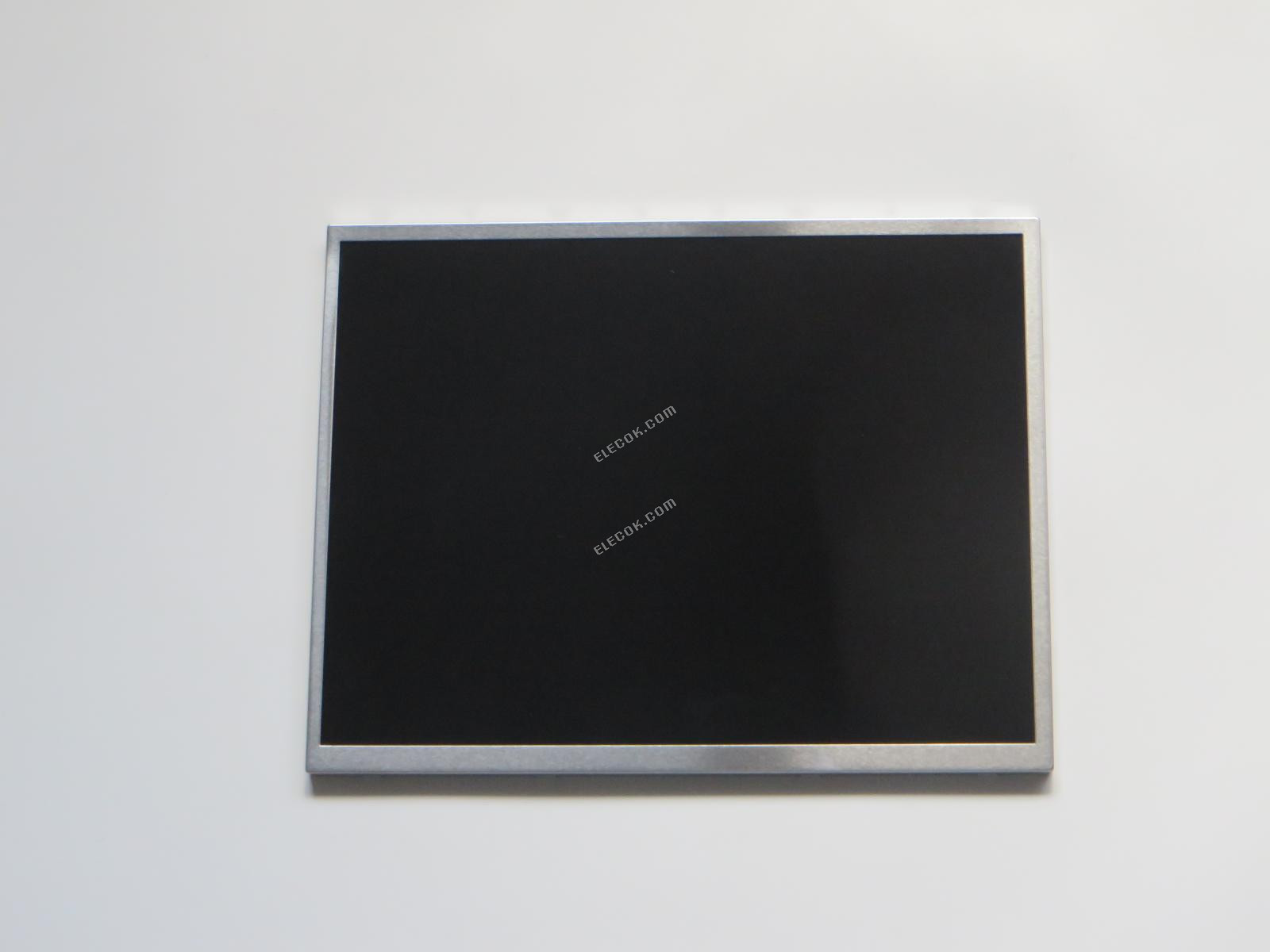

G121S1-L02 12.1" a-Si TFT-LCD Panel for CMO ,used
Gross Weight | 1.3 |
---|
