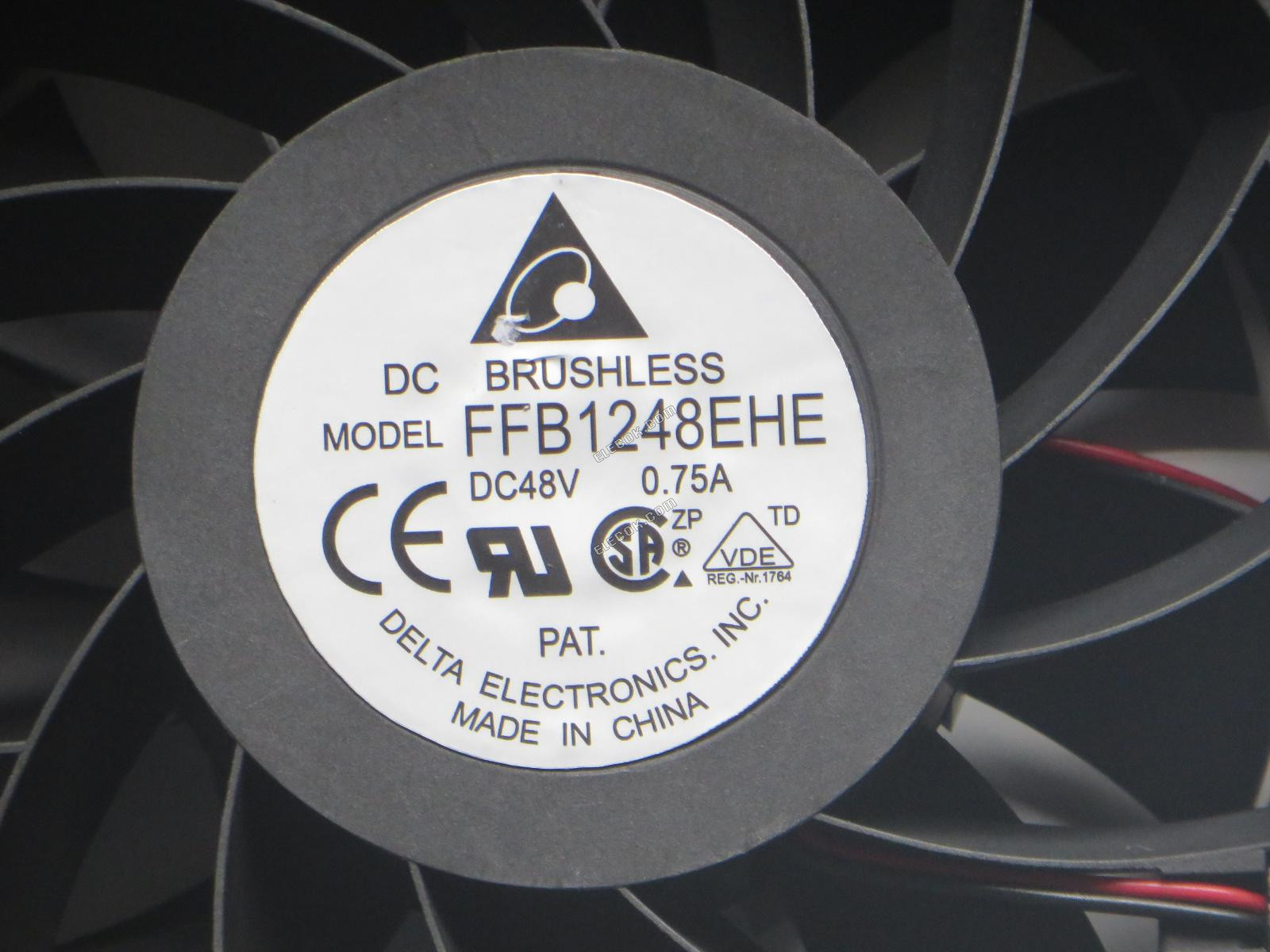

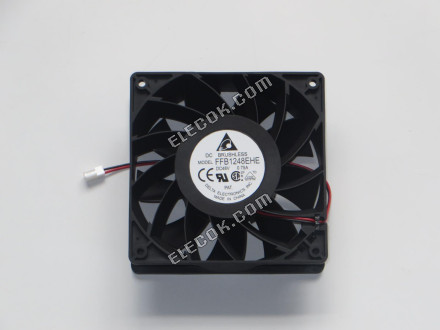

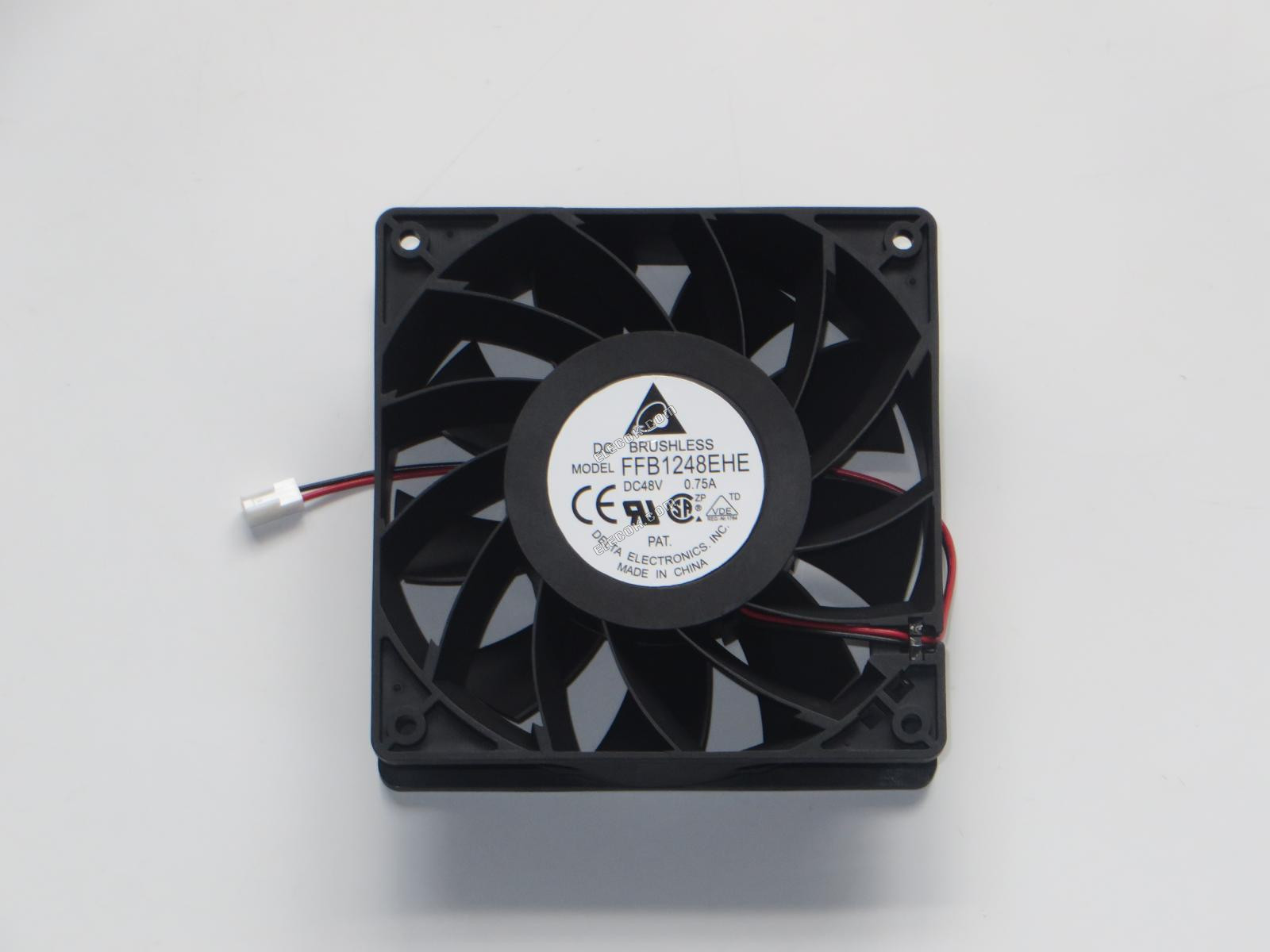

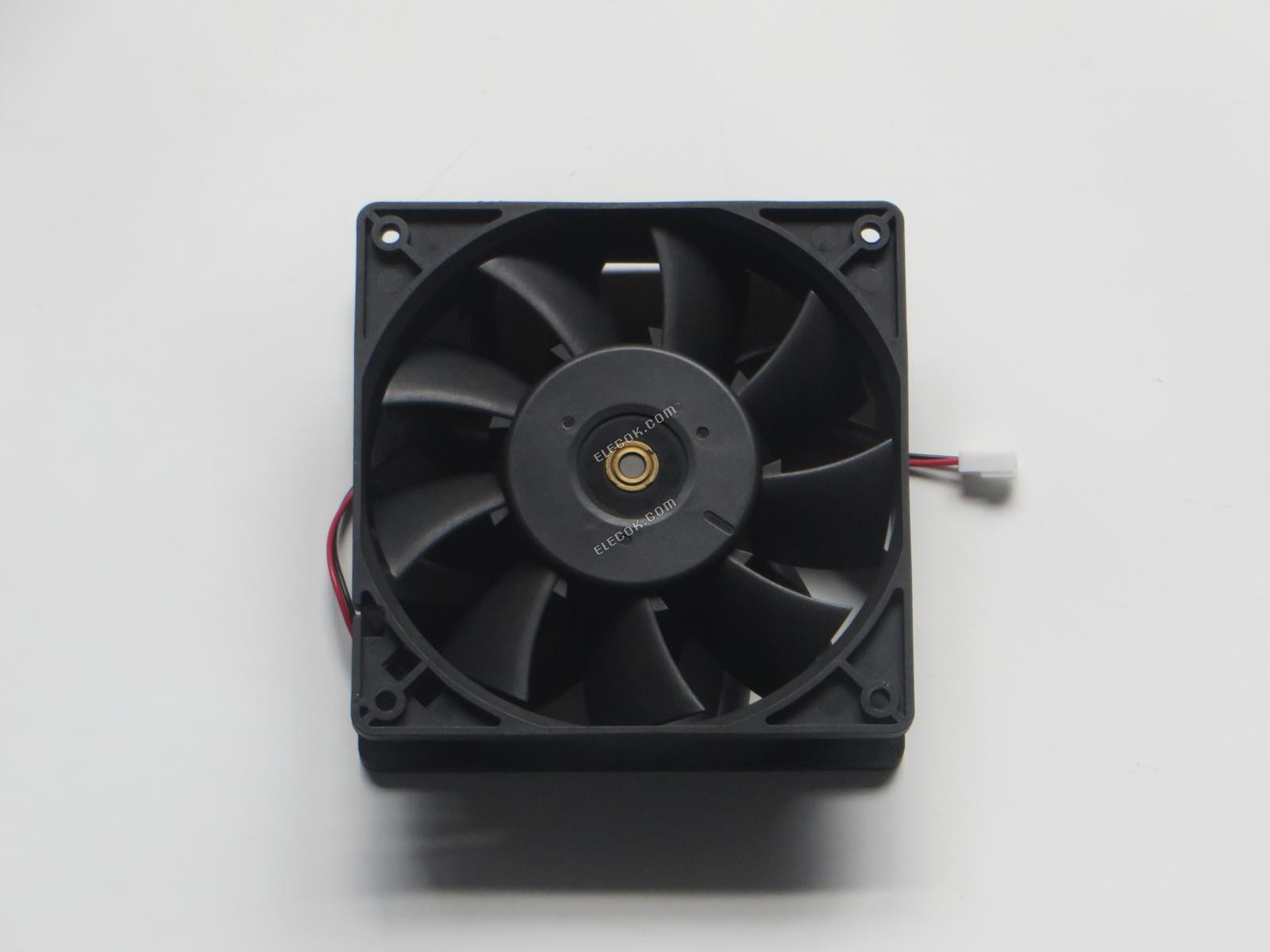

Delta FFB1248EHE 12038 48V 0.75A 2wires Fan
| Data Sheet | Delta FFB1248EHE 12038 48V 0.75A 2wires Fan |
| Model | FFB1248EHE |
| Manufacturer | Delta Electronics |
| Description | FAN AXIAL 120X38MM 48VDC WIRE |
| Width | 38.00mm |
| Voltage Range | 28 ~ 53VDC |
| Voltage - Rated | 48VDC |
| Termination | 2 Wire Leads |
| Static Pressure | 0.700 in H2O (174.4 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H |
| Series | FFB |
| RPM | 4000 RPM |
| Power (Watts) | 24.00W |
| Other Names | 603-1611 |
| Operating Temperature | 14 ~ 122°F (-10 ~ 50°C) |
| Noise | 59.0 dB(A) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Ingress Protection | - |
| Features | - |
| Fan Type | Tubeaxial |
| Current Rating | 0.5A |
| Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE |
| Air Flow | 190.0 CFM (5.32m³/min) |
| Other Name | FFBL248EHE |
