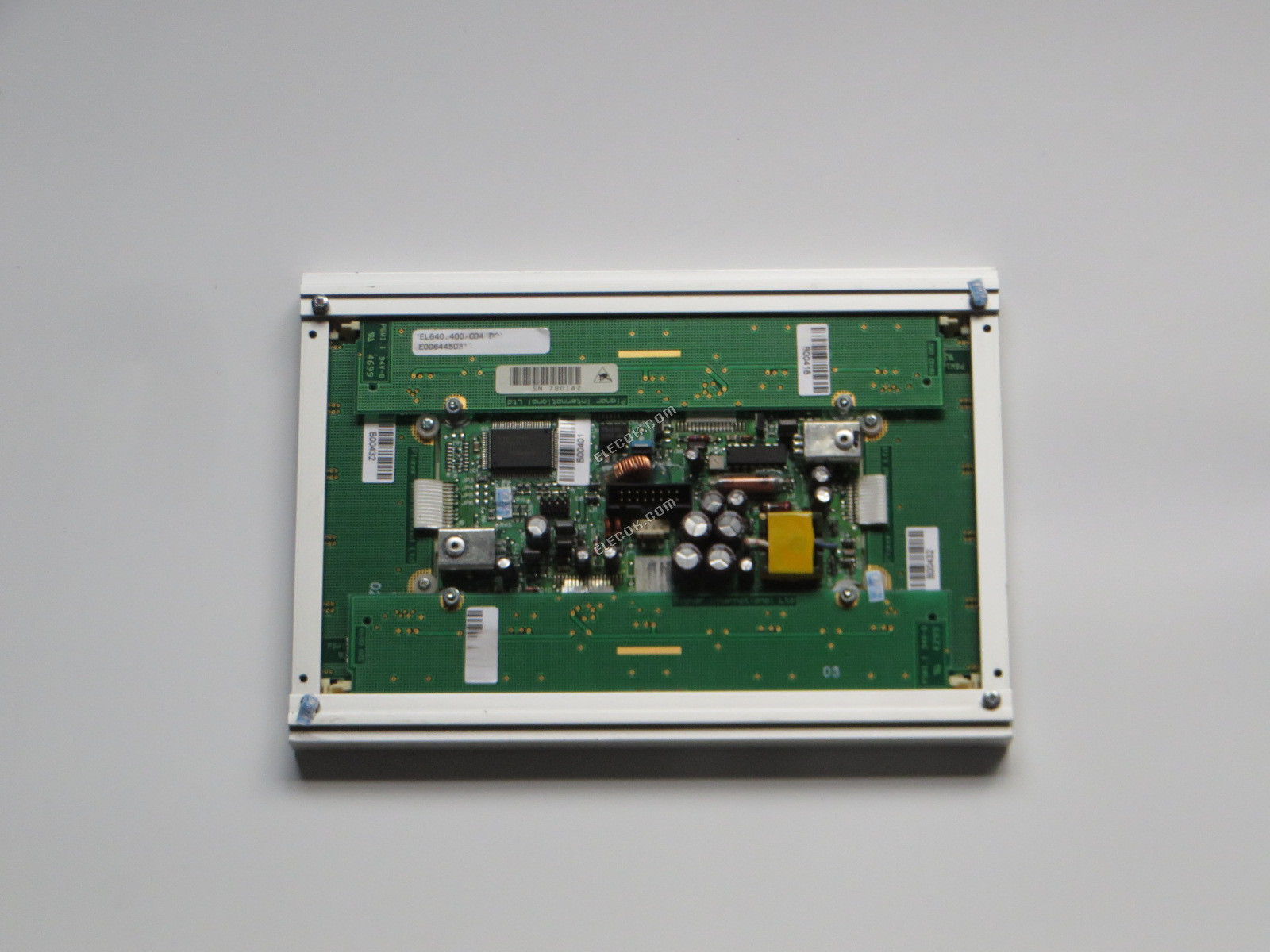

EL640.400-CD4 9.1" EL , EL for Lumineq ,used
| Data Sheet | EL640.400-CD4 9.1" EL , EL for Lumineq ,used |
| Panel Brand | Lumineq |
| Panel Model | EL640.400-CD4 |
| Panel Type | EL , EL |
| Panel Size | 9.1 |
| Resolution | 640×400 |
| Active Area | 195×121.8 mm |
| Outline | 225×147 mm |
| Surface | |
| Brightness | 20 cd/m² (Typ.) |
| Contrast Ratio | 7 : 1 (Typ.) |
| Display Colors | Mono(Yellow) (1-bit) |
| Viewing Angle | 89/89/89/89 (Typ.) (L/R/U/D) |
| Frequency | 70Hz |
| Input Voltage | 5/12V (Typ.)(VCC1/VCC2) |
| RoHS | Unknown |
| Application | Industry Application |
| Other Name | E1640.400-CD4 EL64O.4OO-CD4 |
Lumineq EL640.400-CD4 FRA Basic Information
| Panel Brand | Lumineq |
|---|---|
| Panel Model | EL640.400-CD4 FRA |
| Model Alias | 996-5085-00, E0064450301, E0064450301LF |
| Panel Type | EL , EL |
| Application | Industry Application |
| Operating Temperature | 0 ~ 55 °C |
| Storage Temperature | -40 ~ 85 °C |
| RoHS | Unknown |
| Specific Feature | Wide Viewing Angle Landscape type Lamp life &ge 50K hours WIDE |
| Remarks | 1 or 2 bit Interface, with aluminium mounting frame |
Lumineq EL640.400-CD4 FRA Mechanical Features
| Panel Size | 9.1" |
|---|---|
| Dot Resolution | 640×400 |
| Pixel Configuration | Rectangle |
| Pixel Density | 83 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.305×0.305 mm (H×V) |
| Pixel Pitch | 0.305×0.305 mm (H×V) |
| Active Area | 195×121.8 mm (H×V) |
| Outline Dimension | 225×147 mm (H×V) |
| Outline Depth | 23 mm |
| Holes & Brackets | Rear mounting holes (4-M3) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Lumineq EL640.400-CD4 FRA Optical Features
| Brightness | 20 cd/m² (Typ.) |
|---|---|
| Contrast Ratio | 7 : 1 (Typ.) (Transmissive) |
| Display Color | Mono(Yellow) (1-bit) |
| Response Time | 1 (Max.) |
| Viewing Angle | 89/89/89/89 (Typ.) (L/R/U/D) |
| Viewing Direction | Symmetry |
Lumineq EL640.400-CD4 FRA Electronics Feature
| Vertical Frequency | 70Hz |
|---|---|
| Reverse Scan | No |
Lumineq EL640.400-CD4 FRA Backlight System
| Lamp Type | self |
|---|---|
| Lamp Life Time | 50K(Min.) (Hours) |
Lumineq EL640.400-CD4 FRA Signal Interface
| Input Voltage for Panel | 5/12V (Typ.)(VCC1/VCC2) |
|---|---|
| Panel Power Consumption | 11/19W (Typ./Max.) |
| Interface Type | Connector |
| Signal Interface | Configuration |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
EL640.400-CD4 9.1" EL , EL for Lumineq ,used
| Gross Weight | 1.8 |
|---|
