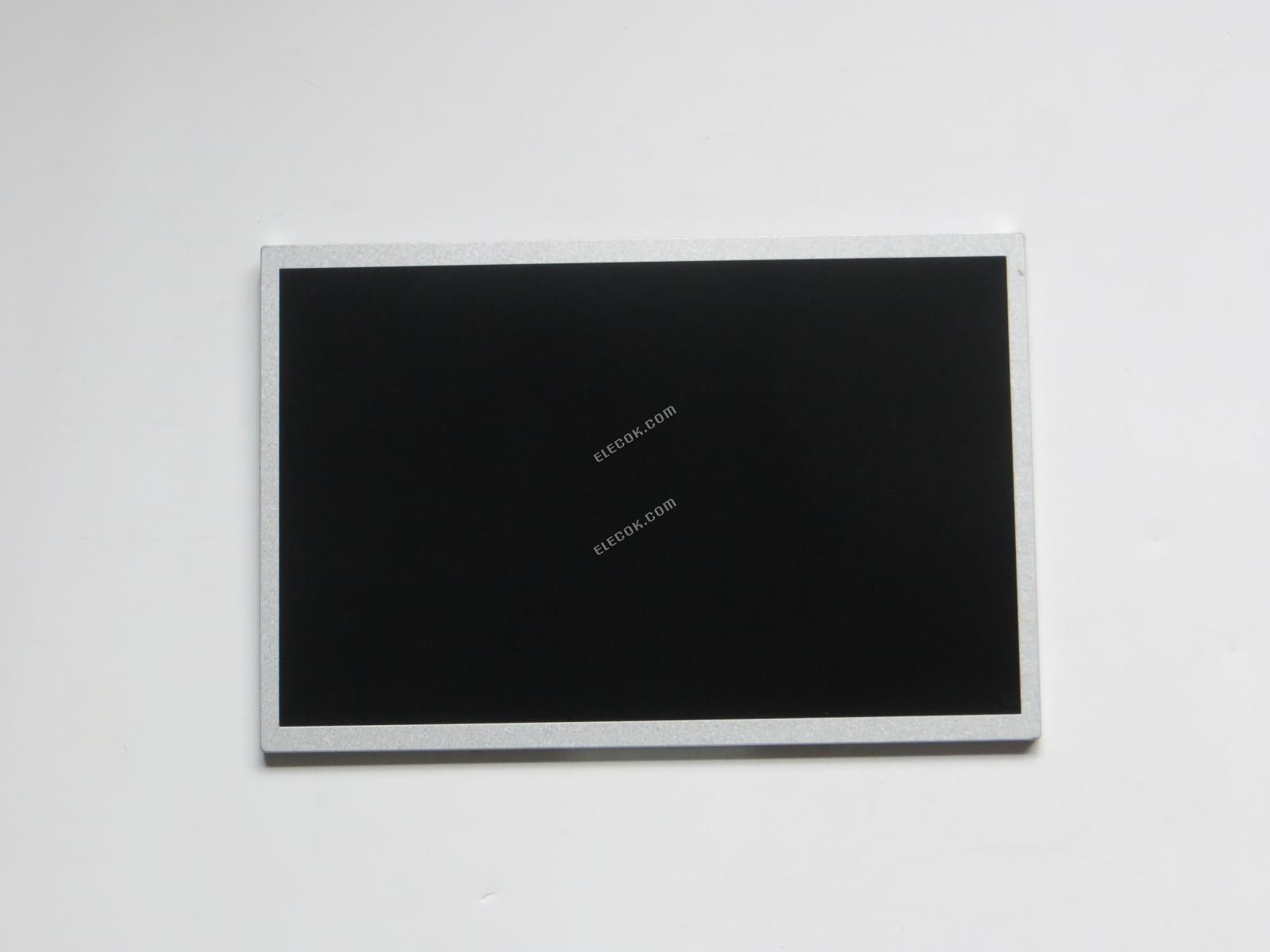

G121ICE-L02 12.1" 1280×800 LCD Panel for Innolux
| Data Sheet | G121ICE-L02 12.1" 1280*800 LCD Panel for Innolux |
| Panel Model | G121ICE-L02 |
| Brand | Innolux |
| Size | 12.1 |
| TN/VA/IPS | AAS |
| Resolution | 1280×800 |
| Brightness | 400 |
| C/R | 1000:1 |
| Surface | AG |
| View Angle | 88/88/88/88 |
| Colors | 262K/16.7M |
| Gamut | 72% |
| Active Area | 261.12×163.2 |
| Outline Size | 278×184 |
| Typ. Depth | 7.6mm |
| Max. Depth | 11mm |
| Shape Style | |
| Backlight | WLED |
| Interface | LVDS |
| Pins | 30 pins |
| Frequency | 60Hz |
| Work Temp. | -20~70°C |
| Storage Temp. | -20~70°C |
| Other Name | GL2LICE-L02 G121ICE-102 G121ICE-LO2 |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
G121ICE-L02 12.1" 1280*800 LCD Panel for Innolux
| Gross Weight | 2.8 |
|---|
