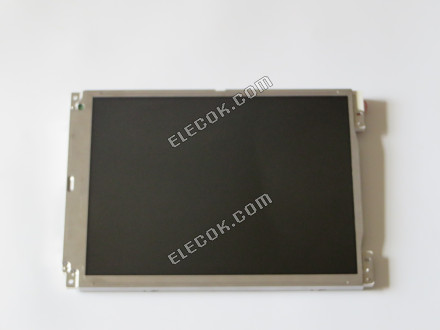

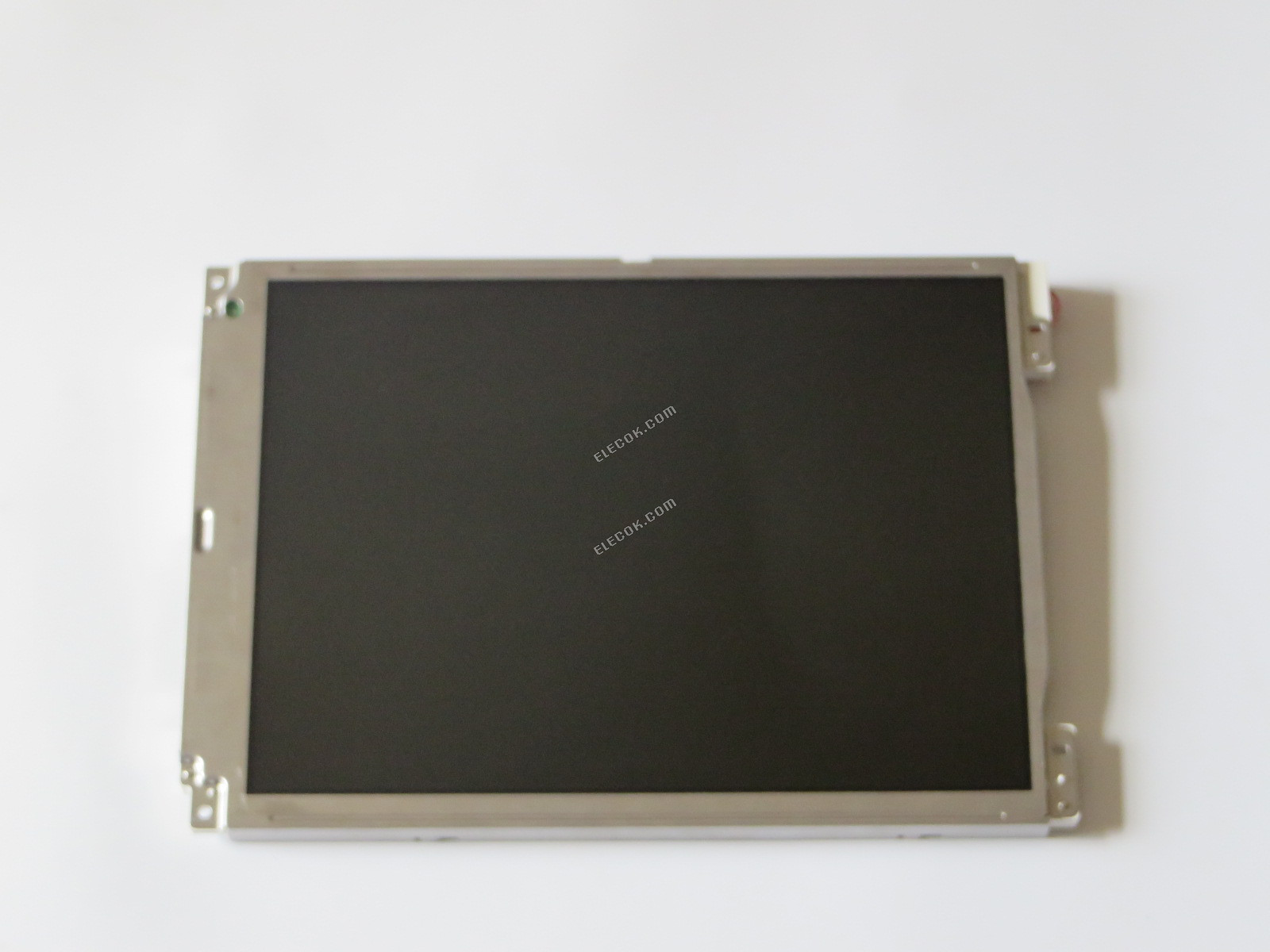

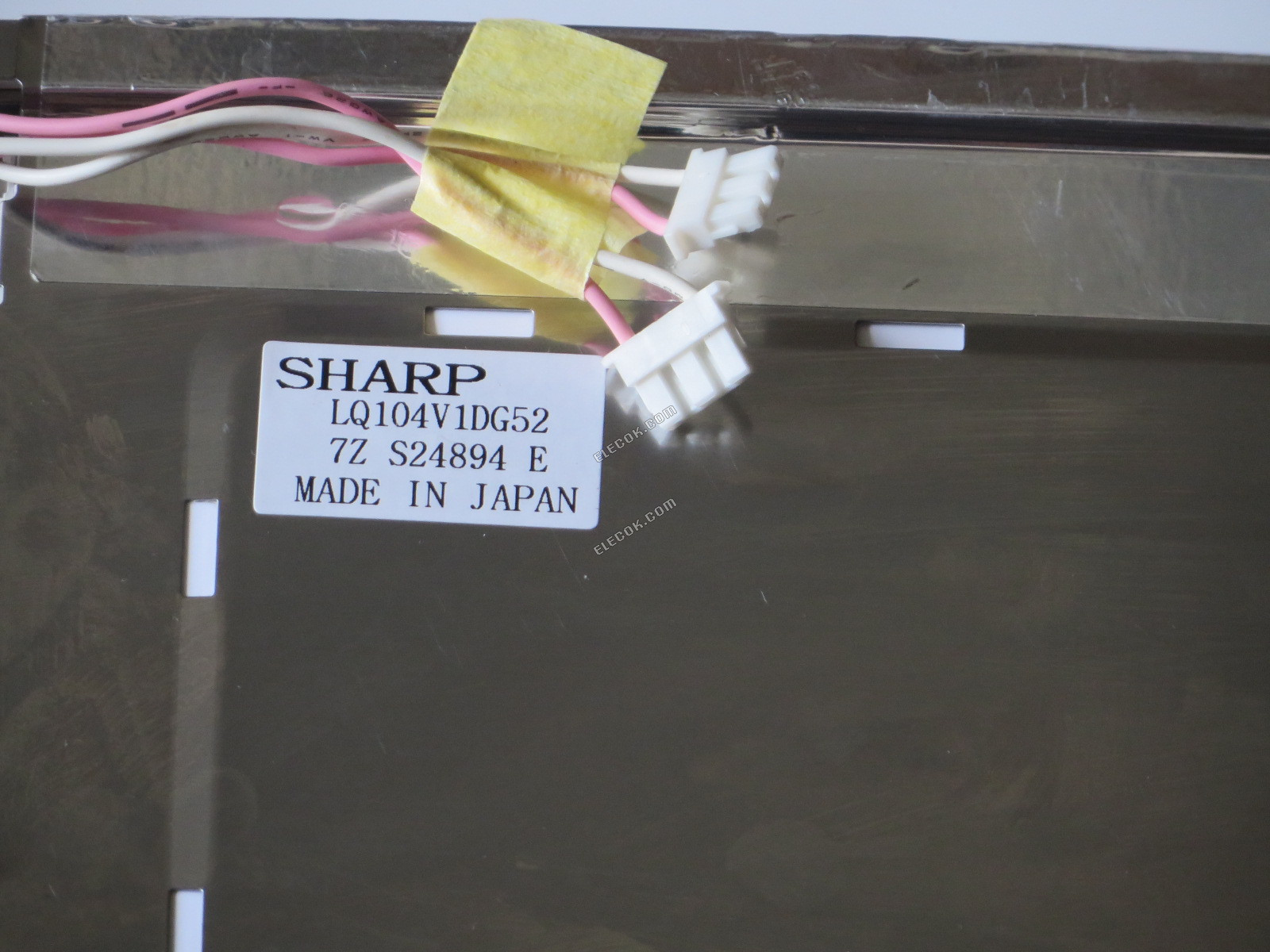

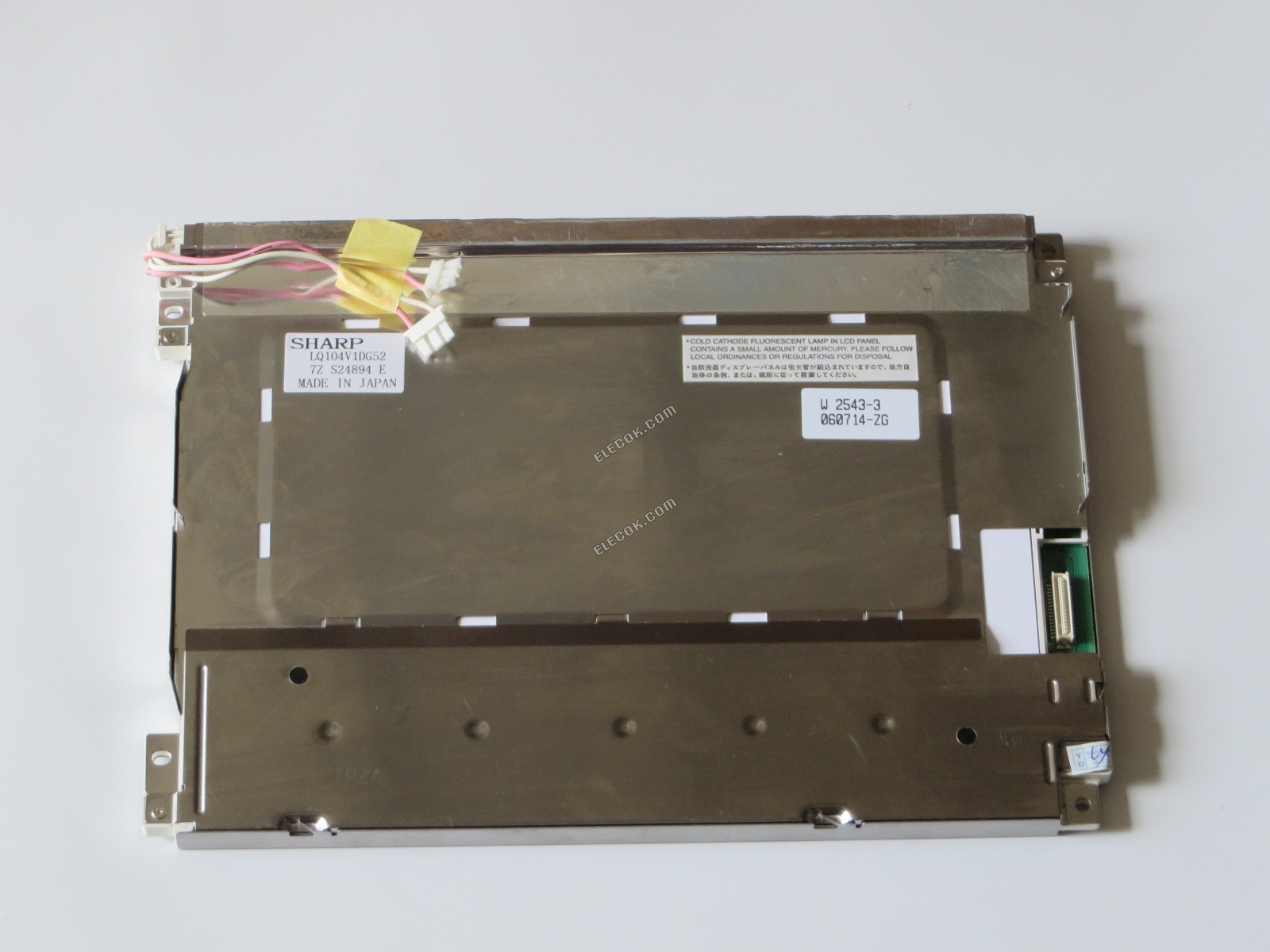

LQ104V1DG52 10.4" a-Si TFT-LCD Panel for SHARP

$69.98

LQ104V1DG52 10.4" a-Si TFT-LCDPanel for SHARP

Data Sheet LQ104V1DG52 10.4" a-Si TFT-LCD Panel for SHARP
Panel BrandSHARP
Panel ModelLQ104V1DG52
Panel Typea-Si TFT-LCDPanel
Panel Size10.4"
Resolution640(RGB)×480 (VGA)
Display ModeTN, Normally White, Transmissive
SurfaceAntiglare, Hard coating (3H), Antireflection
Brightness350 cd/m2 (Typ.)
Contrast Ratio300 : 1 (Typ.) (Transmissive)
Display Colors262K (6-bit)
Response Time10/25 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/40/70 (Typ.)(CR?10) (L/R/U/D)
Frequency
Lamp TypeCCFL
Signal InterfaceParallel RGB (1 ch, 6-bit)
Input Voltage3.3/5.0V (Typ.)(VCC)
LQ104V1DG52 10.4" a-Si TFT-LCD Panel for SHARP
LQ104V1DG52 10.4" a-Si TFT-LCD Panel for SHARP
LQ104V1DG52 10.4" a-Si TFT-LCD Panel for SHARP
