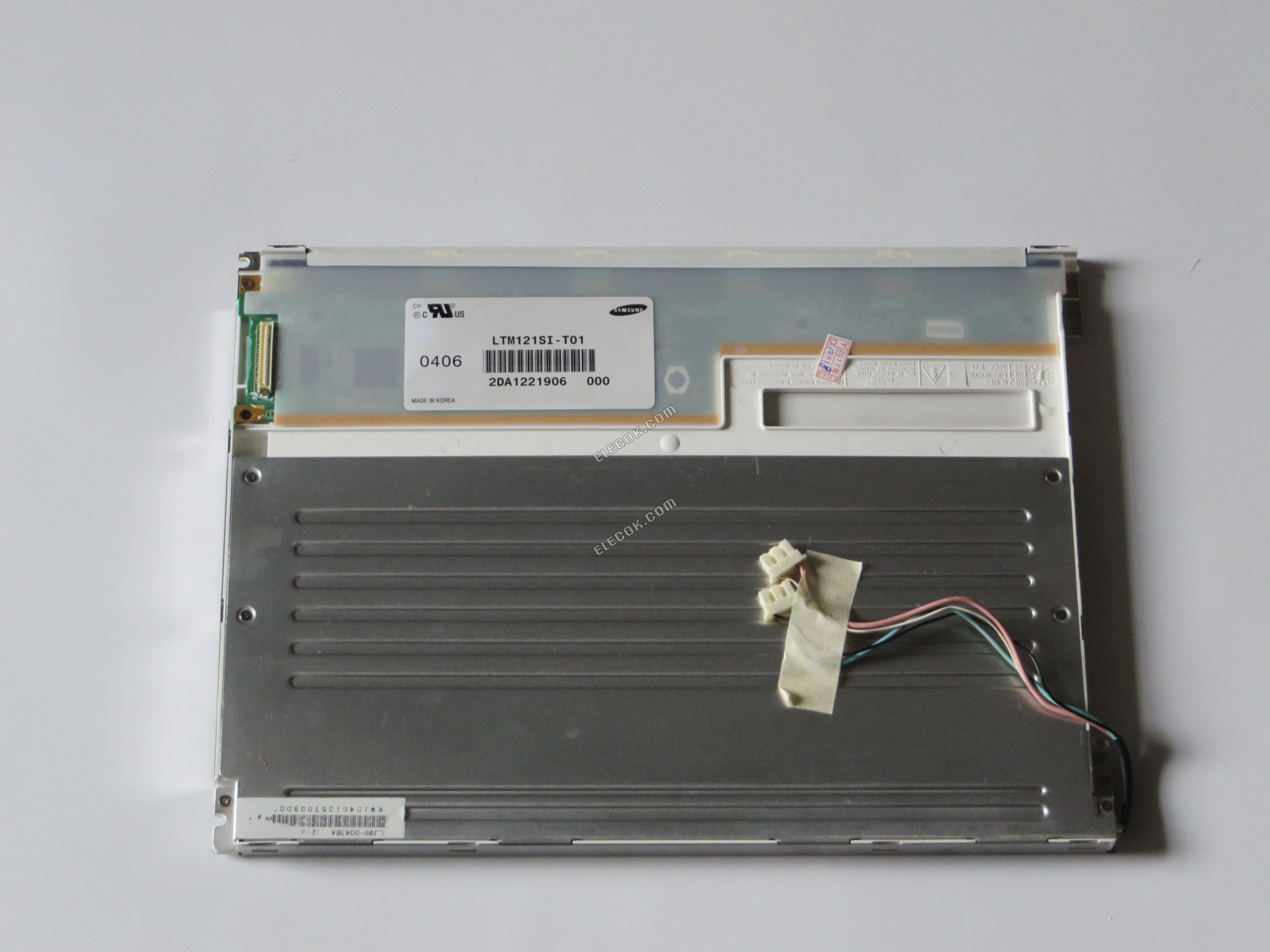

LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used

LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used

$53.98
    VISA VISA VISA Mastercard Mastercard Mastercard PayPal PayPal PayPal JCB JCB JCB American Express American Express American Express Diners Club Diners Club Diners Club DISCOVER DISCOVER DISCOVER

    LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used

    Data Sheet LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used
    Panel BrandSAMSUNG
    Panel ModelLTM121SI-T01
    Panel Typea-Si TFT-LCDPanel
    Panel Size12.1"
    Resolution800(RGB)×600 (SVGA)
    Display ModeTN, Normally White, Transmissive
    SurfaceAntiglare (Haze 25%), Hard coating (3H)
    Brightness300 cd/m2 (Typ.)
    Contrast Ratio300 : 1 (Typ.) (Transmissive)
    Display Colors262K (6-bit)
    Response Time5/25 (Typ.)(Tr/Td) (ms)
    Viewing Angle60/60/45/55 (Typ.)(CR?10) (L/R/U/D)
    Frequency60Hz
    Lamp TypeCCFL
    Signal InterfaceCMOS (1 ch, 6-bit)
    Input Voltage3.3V (Typ.)(VDD)
    Other NameLTML2LSI-T0L
    1TM121SI-T01
    LTM121SI-TO1
    LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used
    LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used
    LTM121SI-T01 SAMSUNG 12.1" A-si TFT-LCD Panel used
    SAMSUNG LTM121SI-T01 Basic Information
    Panel Brand SAMSUNG
    Panel Model LTM121SI-T01
    Panel Type a-Si TFT-LCD Panel
    Application Industrial Application
    Operating Temperature 0 ~ 50 °C
    Storage Temperature -25 ~ 60 °C
    RoHS None RoHS
    Specific Feature Antiglare Sureface Lamp life &ge 50K hours
    SAMSUNG LTM121SI-T01 Mechanical Features
    Panel Size 12.1"
    Dot Resolution 800(RGB)×600 (SVGA)
    Aspect Ratio 4:3 (W:H)
    Pixel Configuration RGB Vertical Stripe
    Pixel Pitch 0.3075×0.3075 mm (W×H)
    Surface Antiglare (Haze 25%), Hard coating (3H)
    Active Area 246.0×184.5 mm (W×H)
    Bezel Area 250.4×188.9 mm (W×H)
    Outline Dimension 275.0×205.5 mm (W×H)
    Outline Depth 10.2±0.5 mm
    Holes & Brackets No
    Touch Panel Without
    SAMSUNG LTM121SI-T01 Optical Features
    Display Mode TN, Normally White, Transmissive
    Brightness 300 cd/m2 (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time No
    Viewing Angle 60/60/45/55 (Typ.)(CR?10) (L/R/U/D)
    Viewing Direction 6 o'clock
    White color Chromaticity X:0.310 Y:0.340
    White Variation 2.00 (Max.)(13 points)
    SAMSUNG LTM121SI-T01 Electronics Feature
    Vertical Frequency 60Hz
    Reverse Scan No
    SAMSUNG LTM121SI-T01 Backlight System
    Lamp Position Edge light type (Top side)
    Lamp Type CCFL
    Lamp Amount 2 pcs
    Lamp Shape Straight
    Lamp Life Time 50K(Min.) (Hours)
    Lamp Voltage No
    Lamp Current 2.0/6.0/7.0mA (Min./Typ./Max.)
    Lamp Operating Frequency 40/60/80KHz (Min./Typ./Max.)
    Lamp Startup Voltage 1236/1740V (Max.)(Ta=+25/0?)
    Lamps Power Consumption 6.0W (Typ.)
    Lamp Driver Board No
    Interface Type Connector
    Interface Brand JST
    Interface Model BHR-03VS-1
    Interface Pin Pitch 4.0 mm
    Interface Amount 2 pcs
    Interface Pins 3 pins
    Pin Configuration BLL-3PINS-HNL
    SAMSUNG LTM121SI-T01 Signal Interface
    Signal Category No
    Signal Class LVDS (1 ch, 8-bit)
    Pin Configuration DRGB-41P1C6B-010F
    Input Voltage for Panel 3.3V (Typ.)(VDD)
    Input Current for Panel 0.90A (Typ.)(IDD)
    Voltage for Display Signals VIL?0.3VDD 0.7VDD?VIH
    Interface Type Connector
    Interface Brand HRS
    Interface Model DF9B-41P-1V
    Interface Pin Pitch 1.0 mm
    Interface Amount 1 pcs
    Interface Pins 41 pins
