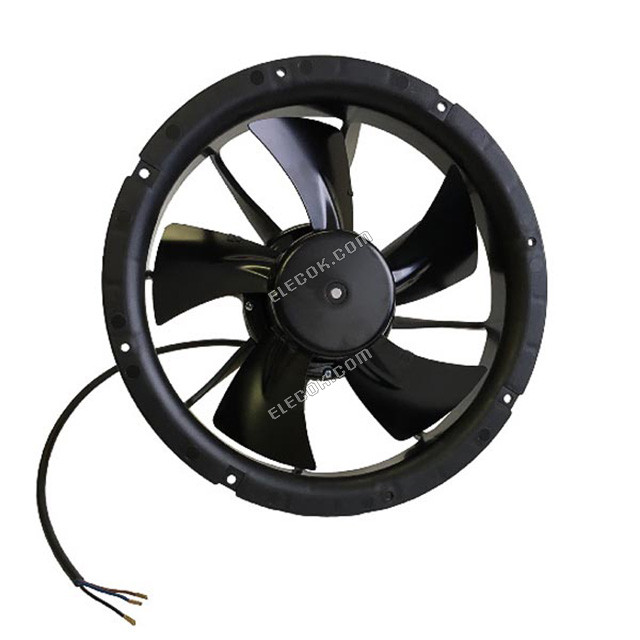

Orion Fans OA200EC-11-1WB AC Fans Fan 250x76mm 115VAC Dual Speed, EC
| Data Sheet | Orion Fans OA200EC-11-1WB AC Fans Fan 250x76mm |
| Model | OA200EC-11-1WB |
| Manufacturer | Orion Fans |
| Description | FAN 250X76MM 115VAC DUAL SPEED E |
| Width | 76.10mm |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| Termination | 3 Wire Leads |
| Static Pressure | 0.280/0.460 in H2O (69.7/114.6 Pa) |
| Size / Dimension | Round - 250mm Dia |
| Series | OA200EC |
| RPM | 1400/2200 RPM |
| Power (Watts) | 8/26W |
| Other Names | 1053-1634 OA200EC-11-1WBX |
| Operating Temperature | -13 ~ 122°C (-25 ~ 50°C) |
| Noise | 44/55 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Metal |
| Lifetime @ Temp. | 40000 Hrs @ 40°C |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Features | Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Fan Type | Tubeaxial |
| Current Rating | 0.130/0.400A |
| Bearing Type | Ball |
| Approvals | cURus, TUV |
| Air Flow | 290.0 ~ 460.0 CFM (8.12 ~ 12.88m³/min) |
| Other Name | OA200EC-LL-LWB 0A200EC-11-1WB OA2OOEC-11-1WB |
