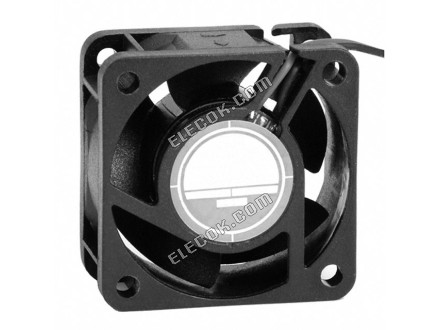

Orion OD4020-24MB01A 24V 0.06A 3wires Cooling Fan
| Data Sheet | Orion OD4020-24MB01A 24V 0.06A 3wires Cooling |
| Manufacturer | Orion |
| Part number | OD4020-24MB01A |
| other name | OD402024MB01A,0D4020-24MB01A,OD4O2O-24MBO1A |
| AC/DC | DC Fans |
| Fan Type | Axial |
| Size | 40 mm x 40 mm x 20 mm |
| Voltage | 24V |
| Current | 0.06A |
| Termination | 3 wires |
| Speed (RPM) | 6900 |
| Air Flow | 8.0 CFM (0.226 m³/min) |
| Features | Speed Sensor (Tach) |
| Bearing | Ball |
| Shape | Square |
| Series | OD4020 |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Noise | 28 dBA |
| Blade_material | Polybutylene Terephthalate (PBT), Fiberg |
| Frame_material | Polybutylene Terephthalate (PBT), Fiberg |
| Other Name | OD4020-24MB0LA 0D4020-24MB01A OD4O2O-24MBO1A |
In the following cases, we will make a free reissue or full refund
Product cannot use in warranty period because of product quality problems
Product is damaged in transit
Product is not delivered in time because of our reason
Process of free reissue or full refund
Buyers send an email to our customer service to describe the problem, and to provide evidence (clear photos, screenshots, or video)
We will check the problem in 1 working days. For eligible cases, we will provide a free replacement or full refund within 1-2 business days
If a return is required, the return shipping fee will be paid by us
Buyers can apply for return or exchange within 90 days of receipt
Orion OD4020-24MB01A 24V 0.06A 3wires Cooling Fan
| Gross Weight | 0.2 |
|---|
