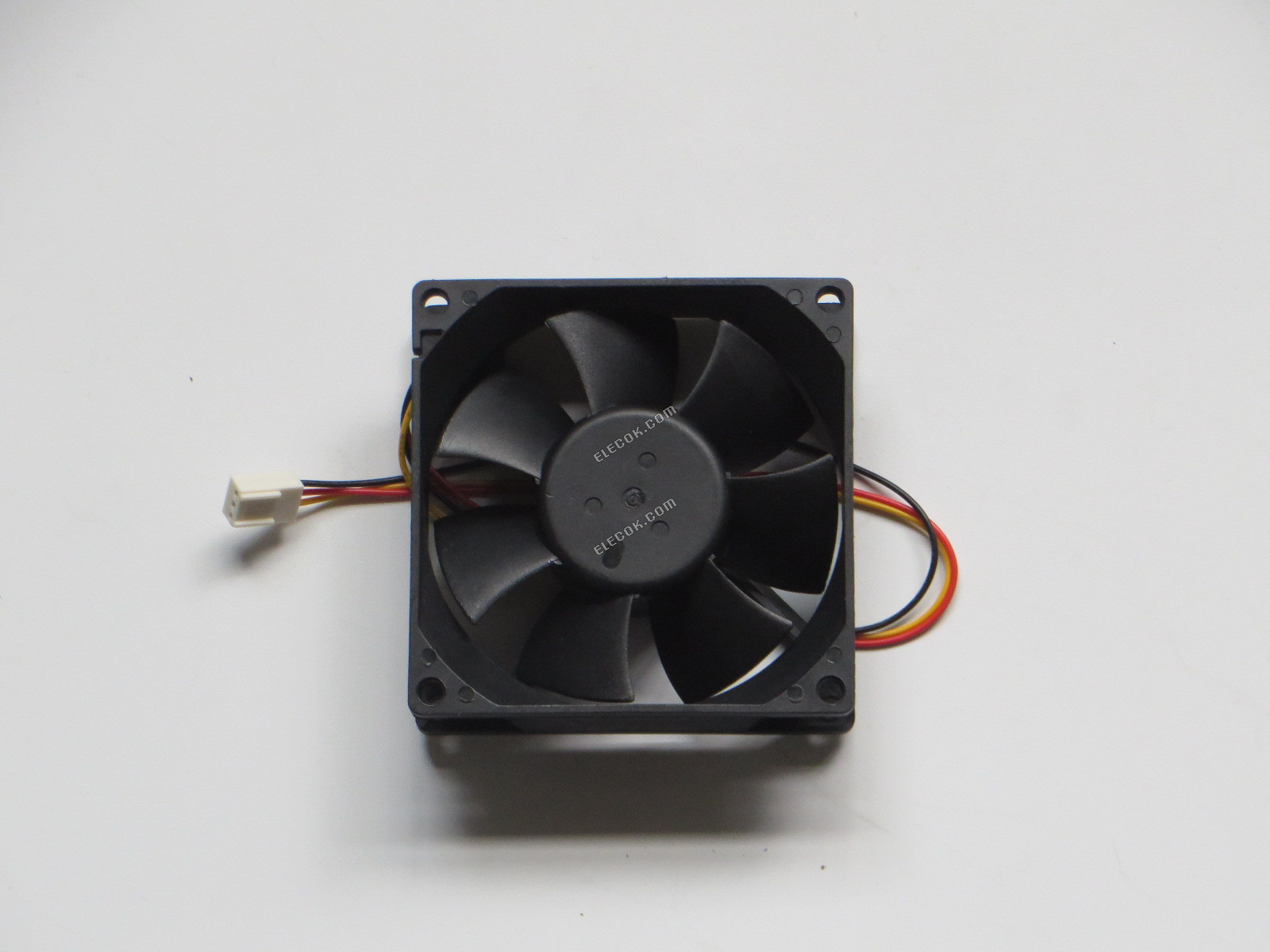

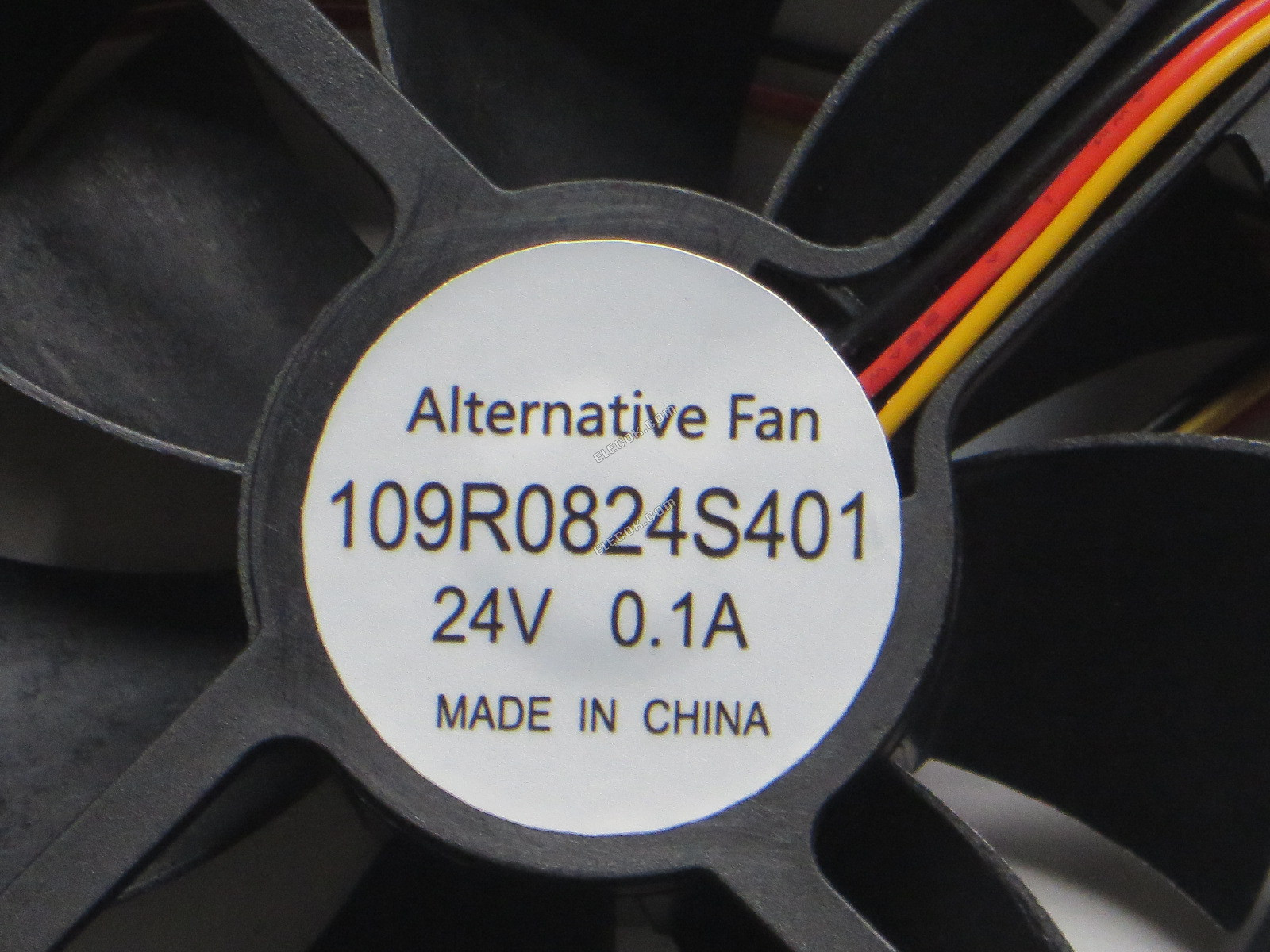

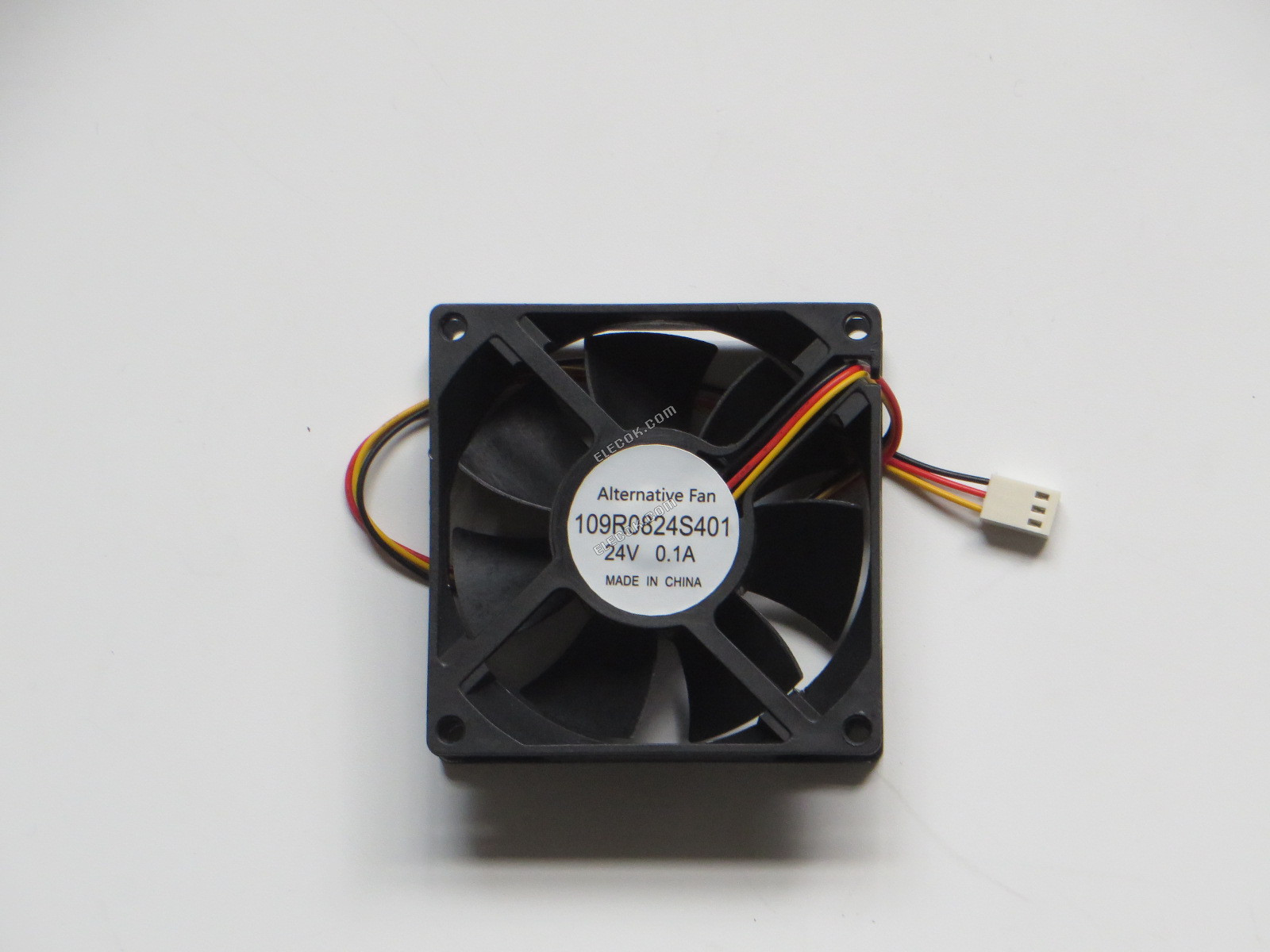

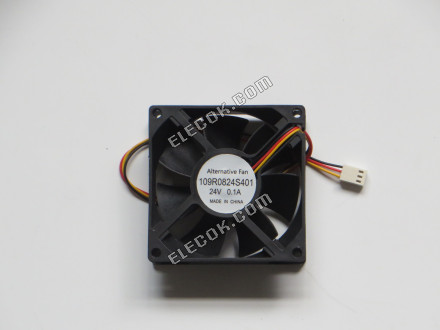

Sanyo 109R0824S401 8025 24V 0.1A 3wires FAN, substitute
| Data Sheet | Sanyo 109R0824S401 8025 24V 0.1A 3wires FAN, |
| Model | 109R0824S401 |
| Manufacturer | Sanyo Denki |
| Description | FAN 80X25MM 24VDC TACH |
| Width | 25.00mm |
| Voltage Range | 12 ~ 27.6VDC |
| Voltage - Rated | 24VDC |
| Termination | 3 Wire Leads |
| Size / Dimension | Square - 80mm L x 80mm H |
| Series | San Ace 80 |
| RPM | 3400 RPM |
| Power (Watts) | 2.40W |
| Other Names | 1688-1307 |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Noise | 34.0 dB(A) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 60000 Hrs @ 60°C |
| Ingress Protection | - |
| Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial |
| Bearing Type | Ball |
| Approvals | CSA, TUV, UL |
| Air Flow | 42.4 CFM (1.19m³/min) |
| Other Name | L09R0824S40L 1O9RO824S4O1 |
