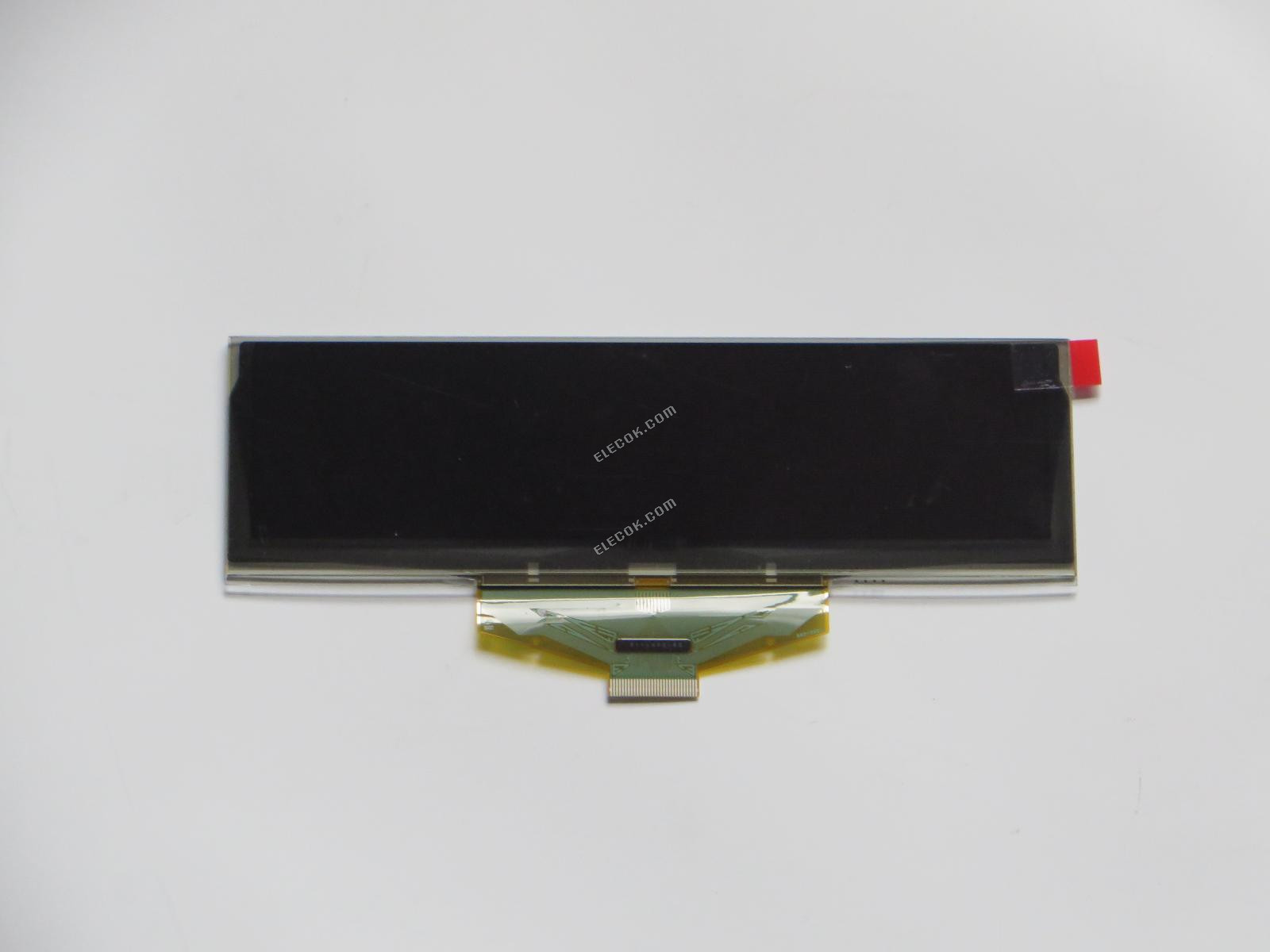

UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
Panel Brand | Univision |
Panel Model | UG-5664ASGGF01 |
Panel Type | PM-OLED,OLED |
Panel Size | 5.5 |
Resolution | 256×64 |
Display Mode | OLED, Green Character |
Surface | |
Brightness | 80 cd/m2 (Typ.) |
Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
Display Colors | Grayscale (4-bit) |
Response Time | |
Viewing Angle | 80/80/80/80 (Min.) (L/R/U/D) |
Frequency | |
Lamp Type | self |
Signal Interface | CPU/SPI |
Input Voltage | 2.8/15V (Typ.)(VCI/VCC) |
RoHS | |
Application | Industrial Application |
Other Name | UG-5664ASGGF0L UG-5664ASGGFO1 |
UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
Univision UG-5664ASGGF01 Basic Information | Panel Brand | Univision |
Panel Model | UG-5664ASGGF01 |
Panel Type | PM-OLED,OLED |
Application | Industrial Application |
Operating Temperature | -30 ~ 70 °C |
Storage Temperature | -40 ~ 80 °C |
Specific Feature | Wide Viewing Angle Wide Temprature Bar Display |
UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
Univision UG-5664ASGGF01 Mechanical Features | Panel Size | 5.5" |
Dot Resolution | 256×64 |
Aspect Ratio | 4:3 (W:H) |
Pixel Configuration | Rectangle |
Pixel Pitch | 0.53×0.53 mm (W×H) |
Active Area | 135.65×33.89 mm (W×H) |
Bezel Area | 137.65×35.89 mm (W×H) |
Outline Dimension | 146.00×45.00 mm (W×H) |
Outline Depth | 2.00±0.1 mm |
Touch Panel | |
UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
Univision UG-5664ASGGF01 Optical Features | Display Mode | OLED, Green Character |
Brightness | 80 cd/m2 (Typ.) |
Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
Display Color | Grayscale (4-bit) |
Viewing Angle | 80/80/80/80 (Min.) (L/R/U/D) |
Viewing Direction | Symmetry |
UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
Univision UG-5664ASGGF01 Backlight System | Lamp Type | self |
Lamp Life Time | 40K(Min.) (Hours) |
UG-5664ASGGF01 5.5" PM-OLED,OLED for Univision
Univision UG-5664ASGGF01 Signal Interface | Signal Category | |
Signal Class | |
Input Voltage for Panel | 2.8/15V (Typ.)(VCI/VCC) |
Input Current for Panel | 1.8/64mA (Typ.)(ICI/ICC) |
Interface Type | FPC |
Interface Pin Pitch | 0.5 mm |
Interface Amount | 1 pcs |
Interface Pins | 30 pins |
